Home / Products / Combination Machine for Filling and Sealing Easy-Opening Cans / XW24-6/XW18-4/XW12-4 Combination Machine for Filling and Sealing Easy-Opening Cans

XW24-6/XW18-4/XW12-4 Combination Machine for Filling and Sealing Easy-Opening Cans

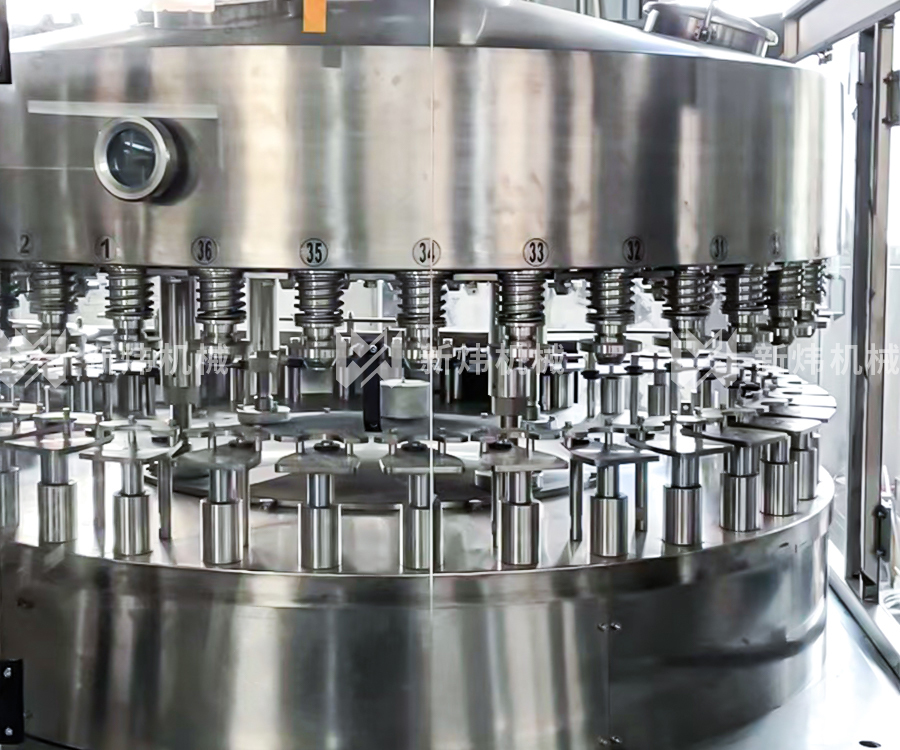

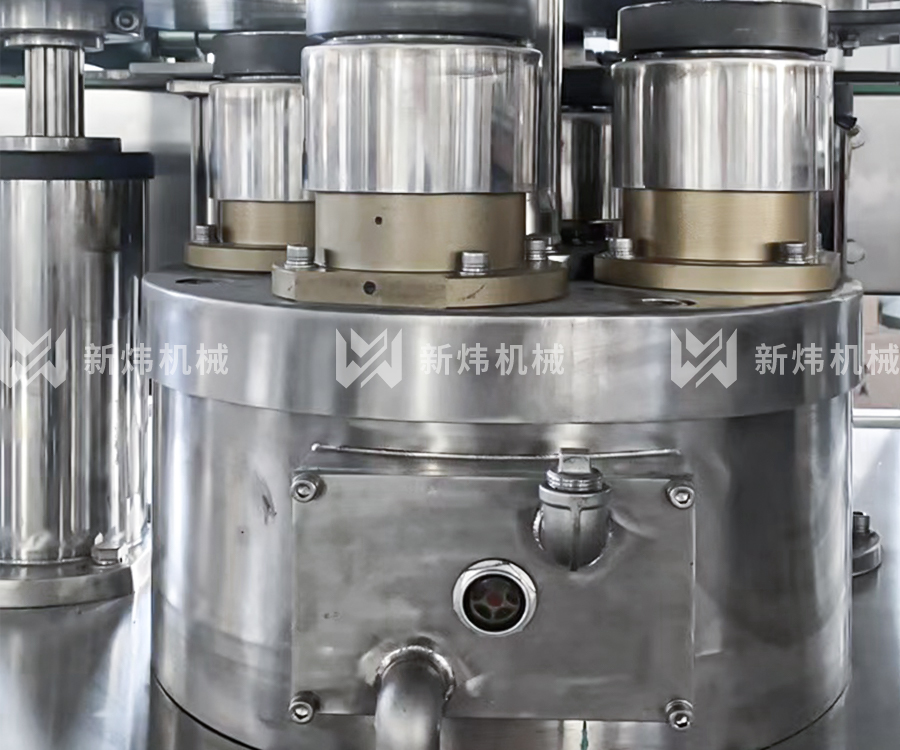

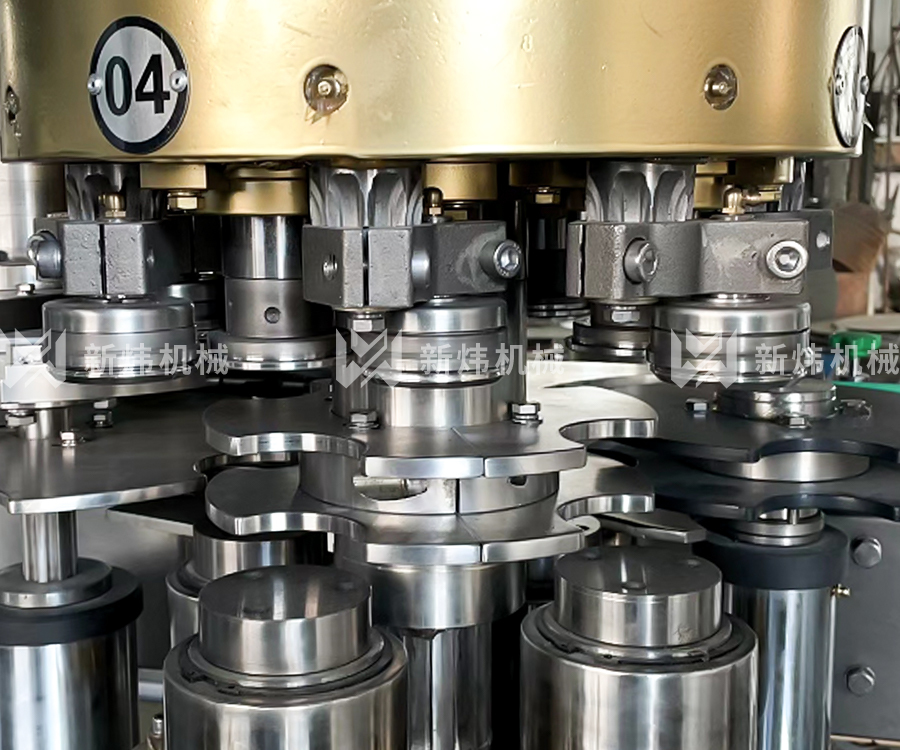

This machine is developed on the basis of digestion and absorption of domestic and foreign (non-gas) cans filling and sealing machine (sealing machine). According to the principle of atmospheric pressure filling, when empty tank enters the lifting tray through the pulley, the filling valve and empty tank are aligned, the empty tank is lifted and sealed, and the valve opening of filling valve is opened automatically. When the filling liquid level blockades the return pipe opening of the valve, the filling stops. The canned cans are sent to the sealing head by hook chain, and the lid is sent to the filling mouth by the cover feeder and the pressure head. When the supporting mechanism is lifted, the pressure head tightens the cans. The sealing wheel first pre- sealing and then solid sealing. After the cans are sealed, the beating head of the cover mechanism is pushed out, and then the cans are transported out of the cans.

Functional characteristics

The main electrical components are PLC, frequency converter and proximity switch of Mitsubishi Japan, analog output of Siemens Germany and solenoid valve of Korea. The most reasonable configuration form is designed by senior electrical engineer of the company. The whole production speed can be set by itself on the touch screen according to the requirements. All common faults are automatically alarmed and the corresponding fault causes are given. The severity of the obstacle, the PLC automatically determines whether the host can continue to run or stop.
This machine is characterized by fast filling speed, consistency of liquid level in tank to filling mouth after filling, smooth operation, good sealing quality, elegant appearance, convenient use and maintenance, etc.


Main Technical Parameters

Model

XW12-4

XW18-4

XW24-6

The number of sealing head

4

4

6

The number of filling head

12

18

24

Production capacity

30~150cans/min

30~250cans/min

30~300cans/min

Can Diameter

Ф52.5~99mm

Ф52.5~99mm

Ф52.5~99mm

Can Height

39~160mm

39~160mm

39~160mm

Power

7.5kw

7.5kw

7.5kw

Weight

3100kg

4000kg

5000kg

Dimension

2750×1450×1900mm

3050×1700×1900mm

3050×1700×1900mm

XW24-6/XW18-4/XW12-4 Combination Machine for Filling and Sealing Easy-Opening Cans

Marvelous Design Meets Rigorous Manufacturing

15

Years Of Experience

Zhejiang Newway Food Machinery Co., Ltd is Custom Easy Open Can Filling And Sealing Machine Manufacturers and OEM easy open can filling and sealing machine suppliers, The company is mainly engaged in the design and manufacture of beverages, canning machines and sealing machines packed with tinplate, aluminium, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, nonsteam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc. The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry. The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, Favourable manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers, and wholeheartedly welcomes friends from all walks of life to visit and patronize.
  • 2019

    Established in

  • 6,000m2

    plant area

  • 80

    Employees

  • 10 +

    Patents

Focus on the field of canned packaging and serve the domestic food industry.

Newway aims to be the partner of choice for its customers, providing more efficient food packaging solutions, high technology, expertise, flexibility and fast service.

  • Pragmatic

    People-oriented, customer-oriented, realistic, down-to-earth. In the market competition to seek the appropriate path of enterprise development and project development, to create value with products and services, to enhance the company's market competitiveness.

  • Innovation

    The society is developing day by day, and we are brave to stand on the tide and dare to be the first. Innovation is the soul of the enterprise, and only through innovation can we maintain the vitality of the enterprise.

  • Cooperation

    Standardize management, operate in good faith, follow the law and give back to the society. Establish a sound corporate governance structure, operation mechanism and business process, uphold the spirit of professionalism and dedication, and earnestly fulfill the social responsibility of a corporate citizen and win the affirmation of the market.

  • Our goal

    Our ambition is ambitious, our goal is clear and never-ending. Our goal is the spiritual driving force for our company to win competitiveness.

Company Certificate

Continuously strengthen the research and development and innovation of core technologies, keep improving, and ensure the excellent performance of each product with Favourable production equipment, strict quality management, and precise testing procedures.

Plant Equipment

As OEM Easy Open Can Filling And Sealing Machine Manufacturers, the company has many of cutting-edge automated
production lines in China.

  • Factory

  • Factory

  • Factory

  • Factory

  • Factory

  • Factory

  • Factory

  • Factory

Related Products

LATEST NEWS

FAQ

  • How to debug the can filling production line?

    Everyone should understand these relevant knowledge in the production operation of the can filling production line, and customers should operate in accordance with the rules and regulations when using and operating, so as to ensure the production and protection of machinery and equipment while greatly improving work efficiency, so as to achieve production and processing benefits . In recent years, due to its high working power, the can filling production line has been widely used in major construction sites, and has also achieved good benefits and guarantees. But do we understand that we need to debug the can filling production line before use to see if it can work normally, so let's learn how to debug the can filling production line first? The can filling production line is attributed to a change in the zigzag structure of the steel bar. The can filling production line should be installed on a flat and solid ground. When the load-bearing frame is installed, the base of the load-bearing frame should be aligned with the base line of the guide cylinder, the straightening cylinder, the lower cutter hole or the shearing gear groove, and the equipment should be straight and straight. After that, check whether the electrical circuit and parts are damaged, whether the connection parts of the machine are reliable, and whether some of the transmissions are active.

  • What is the correct way to operate a can filling production line?

    The can filling production line, if it is a little careless in operation, there may be consequences that we cannot predict. Then, how should we operate it correctly? Here is the correct way to do it for you. 1. The work surface of the feeding material and the off-duty part of the cutter need to be kept on a horizontal scale, and the length of the work table should be determined according to the length of the material to be processed; 2. Before starting the can filling production line, we should pay attention to check and confirm whether the cutter has cracks, whether the bolts on the knife holder are loose, and try to turn the pulley by hand so that we can check whether the gear is It is consistent, and the cutter should be adjusted accordingly; 3. After the normal startup, the first thing to do is to check whether the operation of each part is normal. Generally speaking, the material can be cut only when the speed is normal; Fourth, when the can filling production line cuts short materials, our workers' hands should keep a distance from the cutter, so as to ensure the workers;

  • Under what conditions is a can beverage production line considered a good product?

    Under what conditions can a can beverage production line be considered a good product, and there is a standard for the difference between good and bad. Only when the conditions are met can it be regarded as a good product? The can beverage production line has the characteristics of novel style, small size, low voice, simple operation, advanced, high degree of automation and convenient operation. So there are so many types of can beverage production lines, what conditions need to be met to be considered excellent? In fact, it doesn't have any special standard at all, as long as the work efficiency is high, the speed is fast and so on, it can basically be said to be excellent. In a nutshell, their main features are: The production efficiency is high, and the wire feeding speed can be adjusted steplessly, and the wire feeding speed can be adjusted; Sophisticated materials, reasonable processing and heat treatment processes, high precision and strength of parts, and long service life are the basic standards for an excellent pop-top beverage production line. Others include high mechanical properties. Good, well-made, high-precision features.

Get in Touch

For any inquiries or feedback from customers, we will respond patiently and meticulously.

Industry Introduction
How to maintain Easy Open Can Filling And Sealing Machine
Easy open can filling and sealing machine is mainly used for packing soft drinks, carbonated drinks, fruit juice or other food.
Firstly, we must know what the easy open can filling and sealing machine consist of: There are several parts in the machine. After some days of use, if they get dirty, they can affect product quality, so we need to clean them regularly. Secondly, there is a belt on the machine with a tiny gear at the end of it; this gear has teeth on its inner surface and it moves back and forth when the drive shaft rotates. If dust or dirt gets stuck in between these teeth when they move past each other then it will obviously cause more friction which results in damage to both gears.
Easy open can filling and sealing machine maintenance1.Use only chlorine-free water for cleaning.2.Do not use abrasive cleaners or detergents that contain acid to clean the equipment.3.Confirm to operate at the assigned voltage of 110V or 220V according to local power protection rules4.Avoid pumping the product over 6 minutes when the product is in one place because it will cause great friction and impact on its inner parts5.Clean up the overflow from time to time.
The advantages of Easy Open Can Filling And Sealing Machine
Easy Open Can Filling And Sealing Machine is a multifunctional filling and sealing equipment, it can be used for liquid, gel, dried food and other packing materials.
Easy open can filling and sealing machine is a new product, it has its own patent. The easy open can filling and sealing machine has the advantages of safety, high accuracy, low energy consumption and lower cost.
The Advantage of Easy Open Can Filling And Sealing Machine:1. To measure the amount of filling, it is more accurate and efficient than hand filling.2. The Filling speed is faster than hand filling, but not too fast that people can't empty quickly.3. No human error will happen when the machine fills products automatically (eg: overfilling or underfilling);
This Easy Open Can Filling And Sealing Machine can be used in various industries, it is perfect for filling sour milk and yogurt in plastic containers, also can fill and seal container with liquid food (Tropical Fruit Juice), fruit puree, vegetable puree etc. It is applied to the packing of dairy products and wet product metnods such as pasteurized milk, sterilized milk and UHT milk ,fruit juice, soybean milk and juice drink etc.
