XW4B100 Large can automatic sealing machine

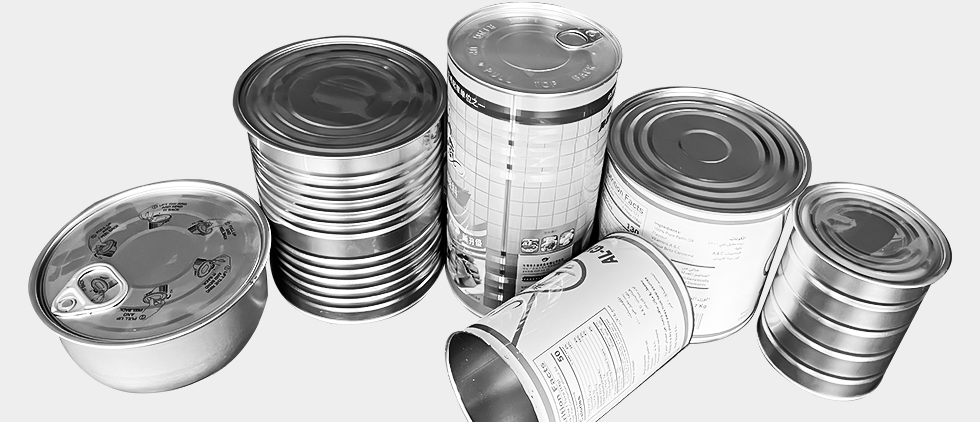

This machine is a can sealing machine with 4 sealing heads, which is suitable for sealing round solid cans (large cans) of jam, juice and other foods, and can also be used for bottom sealing of empty cans. It has the characteristics of stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation and so on.

Adopt PLC, frequency converter, man-machine interface control system. Through various sensors on the equipment, the accurate production speed and production quantity can be displayed on the touch screen, and the production speed can be set on the touch screen according to user requirements. The whole machine has various protections for the main motor and other electrical appliances, such as overload, overvoltage, etc. At the same time, the corresponding various faults will be automatically displayed on the touch screen, which is convenient for users to find the cause of the fault.

Functional characteristics

Main machine parts

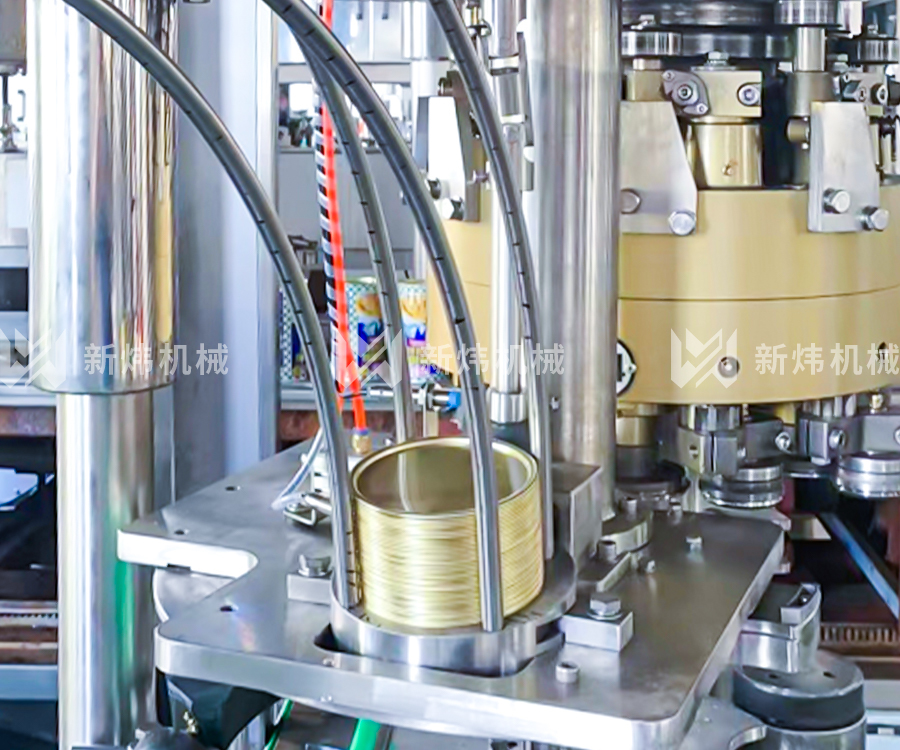

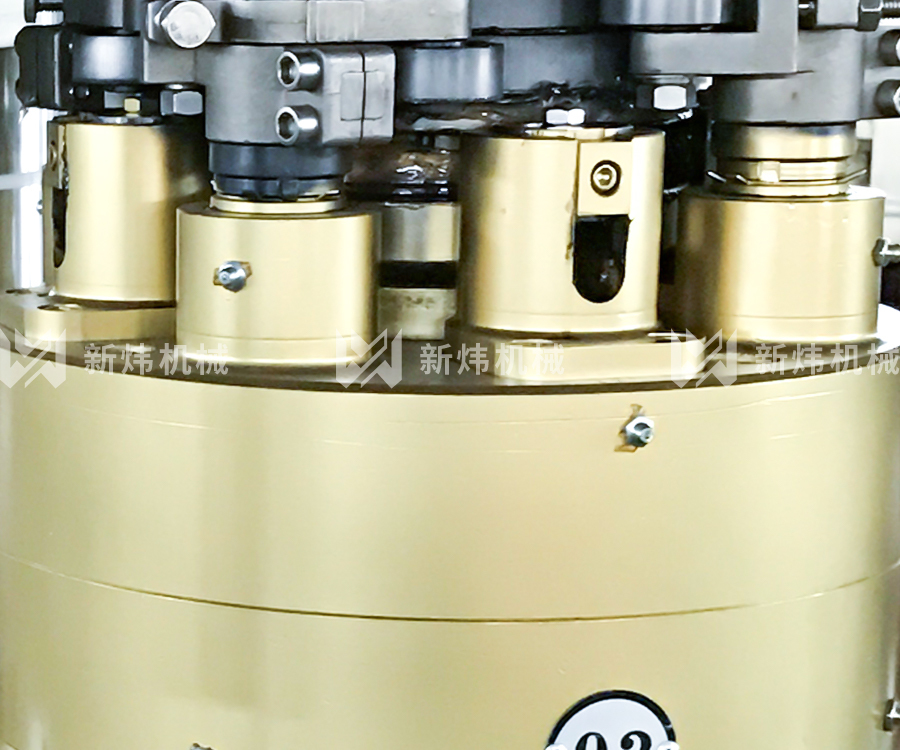

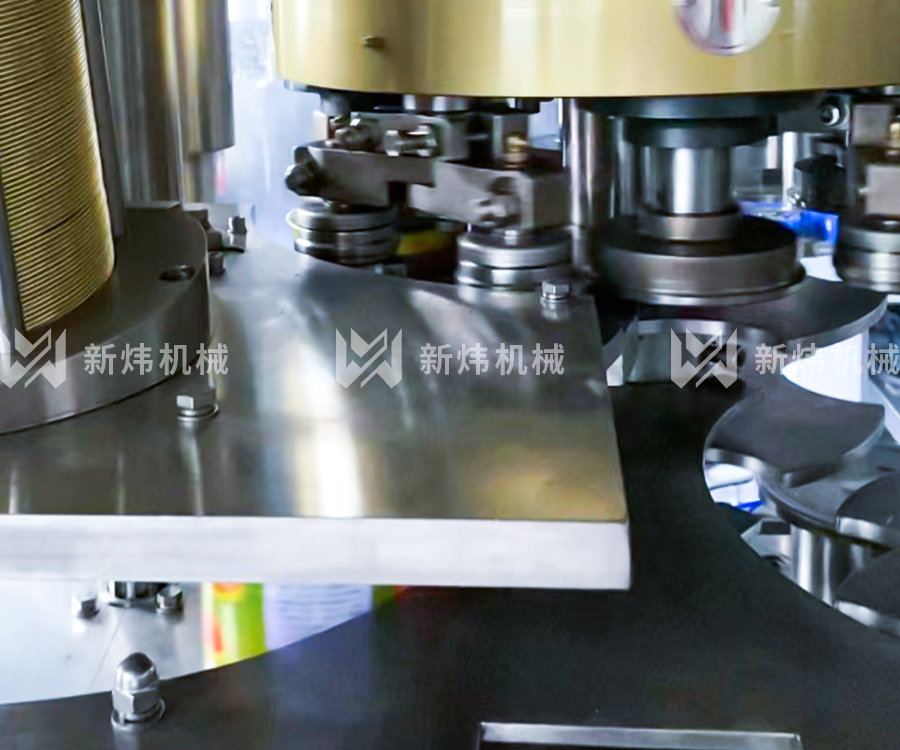

This machine is composed of a worktable, a lifting and supporting tank, a cam bracket, a tank tray, a sealing body, a pressure head, a sealing wheel, a capping head, a can pulling wheel, a transmission system, an electrical system and other components.

Material

a. Transmission parts: high quality carbon steel

b. Conveyor belt parts: side plate is 304 stainless steel, conveyor chain is POM flat top chain

c. Sealing parts: high quality carbon steel, bearing steel, tool steel

d. Disk, track parts: 304 stainless steel

e. Frame: high quality carbon steel, outsourcing 304 stainless steel


Electrical configuration

Control section

Name

Model

Specification

Origin

PLC

DVP14SS211R

24V DC

Taiwan Delta

HMI

B07S411

7 inch color

Taiwan Delta

Switching power supply

PMC-024V050W1AA

220V AC

Taiwan Delta

Inverter

Z2400-7R5G/5R5P

380V 7.5kw

Shanghai Zhongchen

Emergency button

TN2BKR-2C

Mounting hole 22mm

Domestic

low pressure part

Name

Breaker

Specification

Origin

Air switch

DZ47-60

40A 3P

Domestic

Air switch

DZ47-60

4A 1P

Domestic

Contactor

NC1-0911

Coil 220V AC

Domestic

Breaker

DZ108-4/211

2.5-4A

Domestic

Domestic

Intermediate relay

RJ2S-CL-D24

24VDC

Domestic

Illuminated button

YW1L-MF2E10Q4G

24V DC LED

Domestic

Proximity switch

PR12-4DN

24V DC NPN

Autonics

Proximity switch

PR18-4DN

24V DC NPN

Autonics

Main Technical Parameters

Model:

XW4B100

Number of sealed cans: 4
Production capacity:

20-100 can/min

Applicable tank diameter:

Ф99~Ф153mm

Applicable tank height:

60~200mm

Power:

5.5kw

Weight:

2500kg

Dimensions:

2500X1800X2000mm
