XW12-4N/XW18-4N/XW30-6N High-speed combination machine for filling and sealing thick sauce

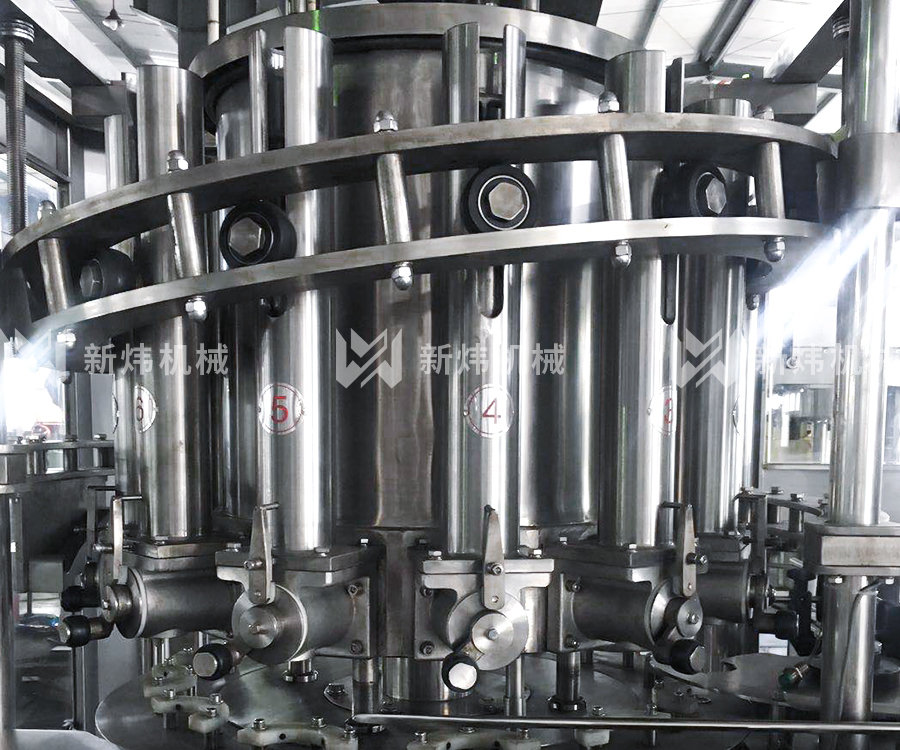

This machine adopts the principle of piston filling. After empty tank is transported to the filling position, compressed air enters the cylinder through pneumatic triple parts and opens the filling valve. Under the action of cam, the piston moves downward in the piston cylinder for filling. After filling, the filling valve closes automatically under the action of cylinder and the piston cylinder sucks material. The poured pot is sent to the sealing machine by the synchronous running hook chain after it is out of the pot for sealing. When the tray is lifted by the bracket mechanism of the can sealing machine, the pressure head is pressed against the lid, and the two rollers are pre-sealed and sealed respectively under the action of cams.The sealed tank is sent to the conveyor belt under the action of the discharging pulley.

Functional characteristics

This machine adopts PLC, frequency converter and man-machine interface control system. It has control technology such as frequency conversion and speed regulation, automatic filling with cans, no cans and no filling. Through various sensors on the device, the accurate production speed and quantity can be displayed on the touch screen. The production speed can be set on the touch screen according to the user is requirements. The whole machine has various protections of main motor and other electrical appliances, such as overload, overvoltage, etc. At the same time, the corresponding faults will be automatically displayed on the touch screen to facilitate users to find out the causes of the faults. The main electrical components of this machine adopt internationally renowned brands, and can also be formulated according to customer requirements.

It is suitable for filling various kinds of sauces (such as tomato sauce, chili sauce, fruit sauce) and other viscous materials, high concentration, pulp or granular beverages, and even pure liquid quantitative filling.



Main Technical Parameters

Mode

XW12-4N

XW30-6N

The number of capping head

4

6

The number of filling head

12

30

Can Height

39~160mm

39~160mm(Special specifications are)

Can Diameter

52~99mm

52~99mm

Filling capacity

70~850g(Currently three types of bores)

70~850g(Currently three types of bores)

Production capacity

80~200cans/min(It is related to filling quantity, etc.)

80~400cans/min(It is related to filling quantity, etc.)

Power

7.5kw

7.5kw

Weight

4000kg

5800kg

Dimension

2800×1600×1900mm

3214×2104×1900mm
